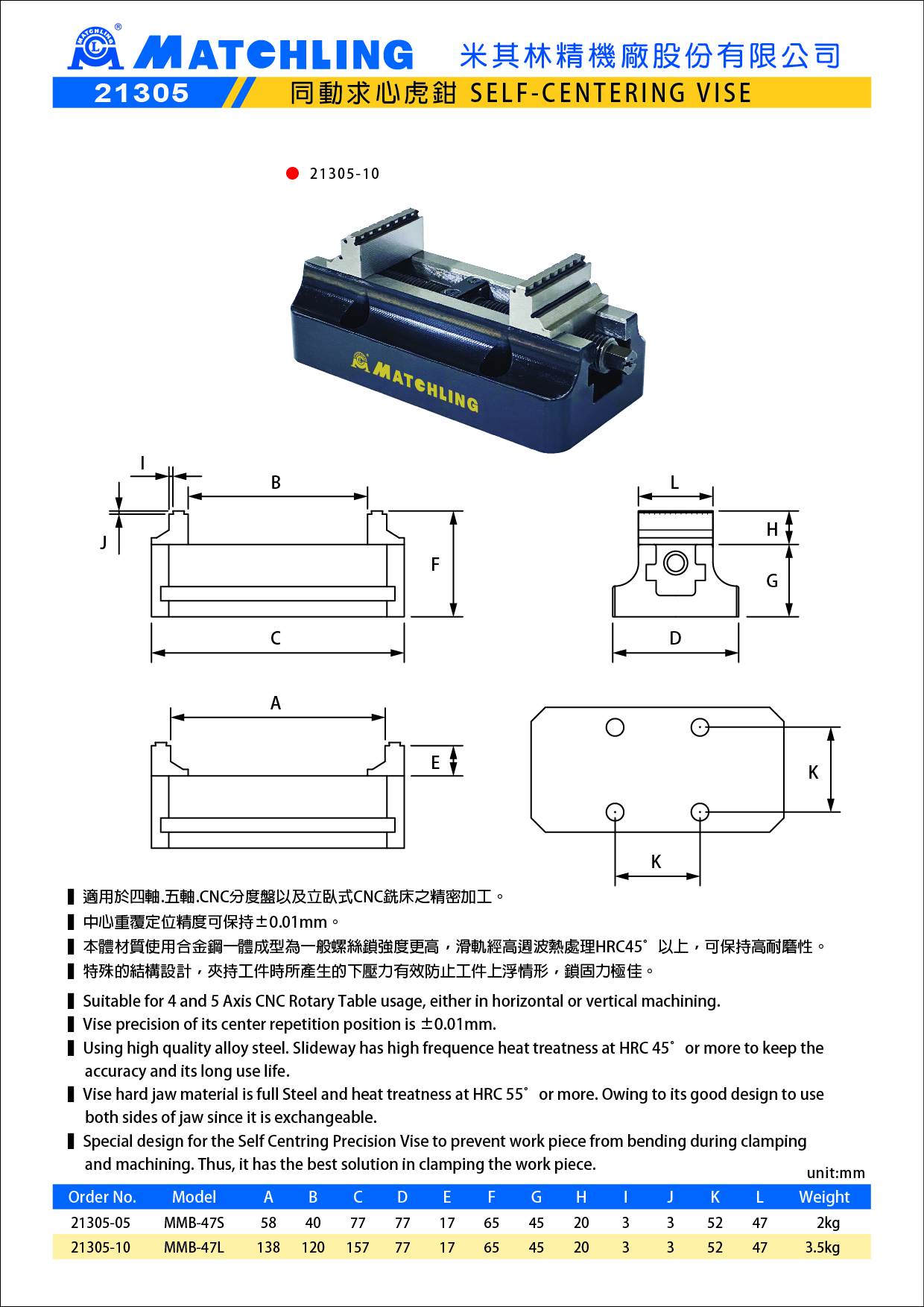

▍Vise precision of its center repetition position is ±0.01mm.
▍Using high quality alloy steel. Slideway has high frequence heat treatness at HRC 45°or more
to keep the accuracy and its long use life.
▍Vise hard jaw material is full Steel and heat treatness at HRC 55°or more. Owing to its good
design to use both sides of jaw since it is exchangeable.
▍Special design for the Self Centring Precision Vise to prevent work piece from bending during
clamping and machining. Thus, it has the best solution in clamping the work piece.

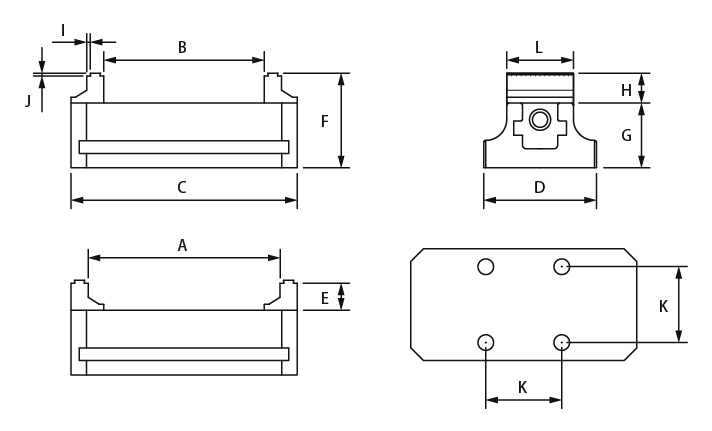

| Order No. | Model | A | B | C | D | E | F | G | H | I | J | K | L | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 21305-05 | MMB-47S | 58 | 40 | 77 | 77 | 17 | 65 | 45 | 20 | 3 | 3 | 52 | 57 | 2 |
| 21305-10 | MMB-47L | 138 | 120 | 157 | 77 | 17 | 65 | 45 | 20 | 3 | 3 | 52 | 47 | 3.5 |
